FRABA VITECTOR OSE-S 6601 Optical Edge Sensors Transmitter Tx 6,5m/Receiver Rx 0,5m PVC-Cable GfA-plug

€56.00*

in stock

Product number: TA0300072
Picture can deviate from the original
prouct.usp1.image

Technical Support Hotline +44 115 7180691

prouct.usp4.image

Only 100% New and Original Parts

prouct.usp5.image

Special Prices available for Door Dealers and Resellers. Contact us!

prouct.usp8.image

Stocked Products Ship within 24h

Product information "FRABA VITECTOR OSE-S 6601 Optical Edge Sensors Transmitter Tx 6,5m/Receiver Rx 0,5m PVC-Cable GfA-plug"

Set Transmitter (Tx) and Receiver (Rx) for Optical Sensing Edge OSE, PVC-cable, cable length 6,5m/0,5m, with Molex-plugs

Description:

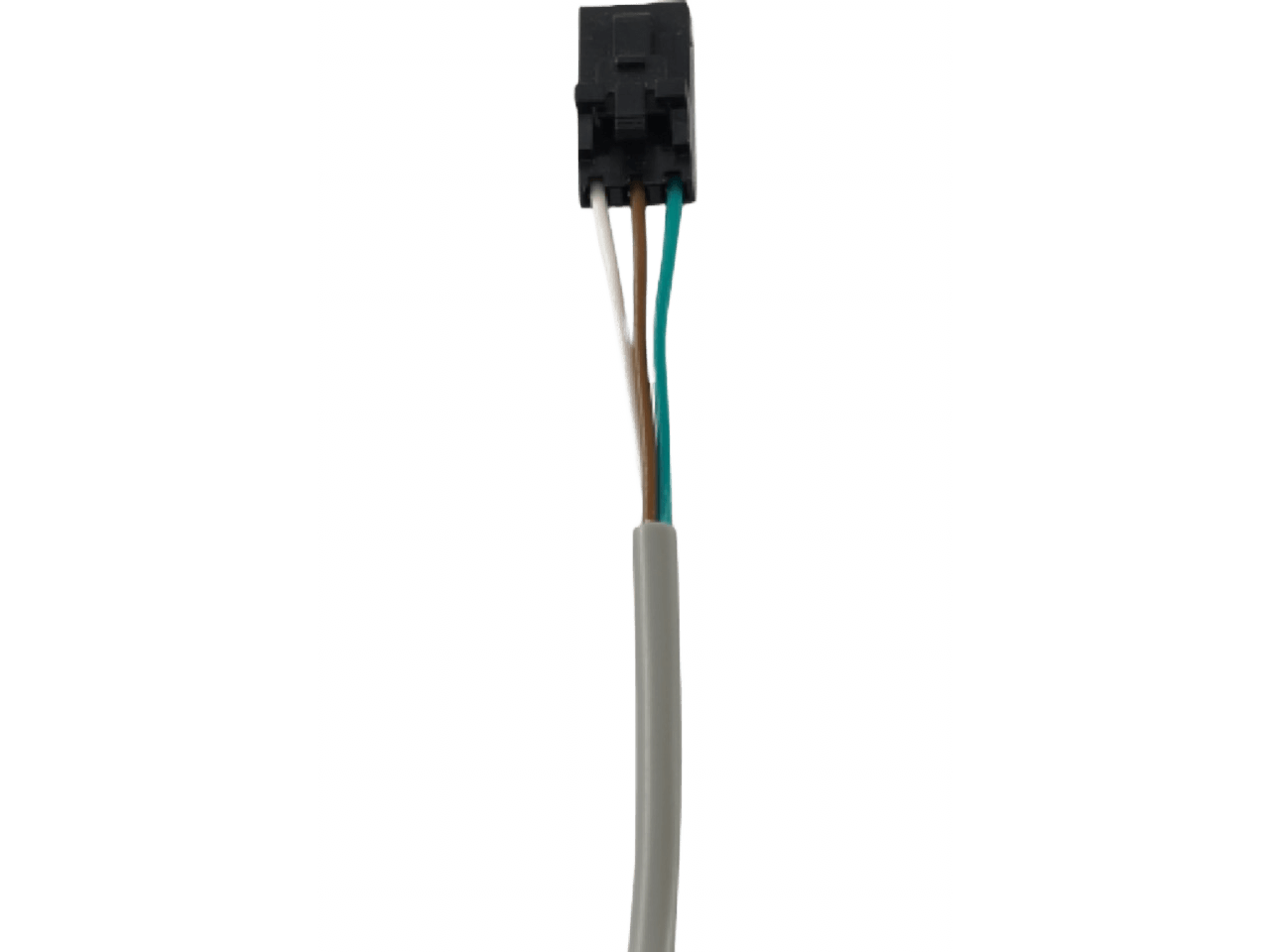

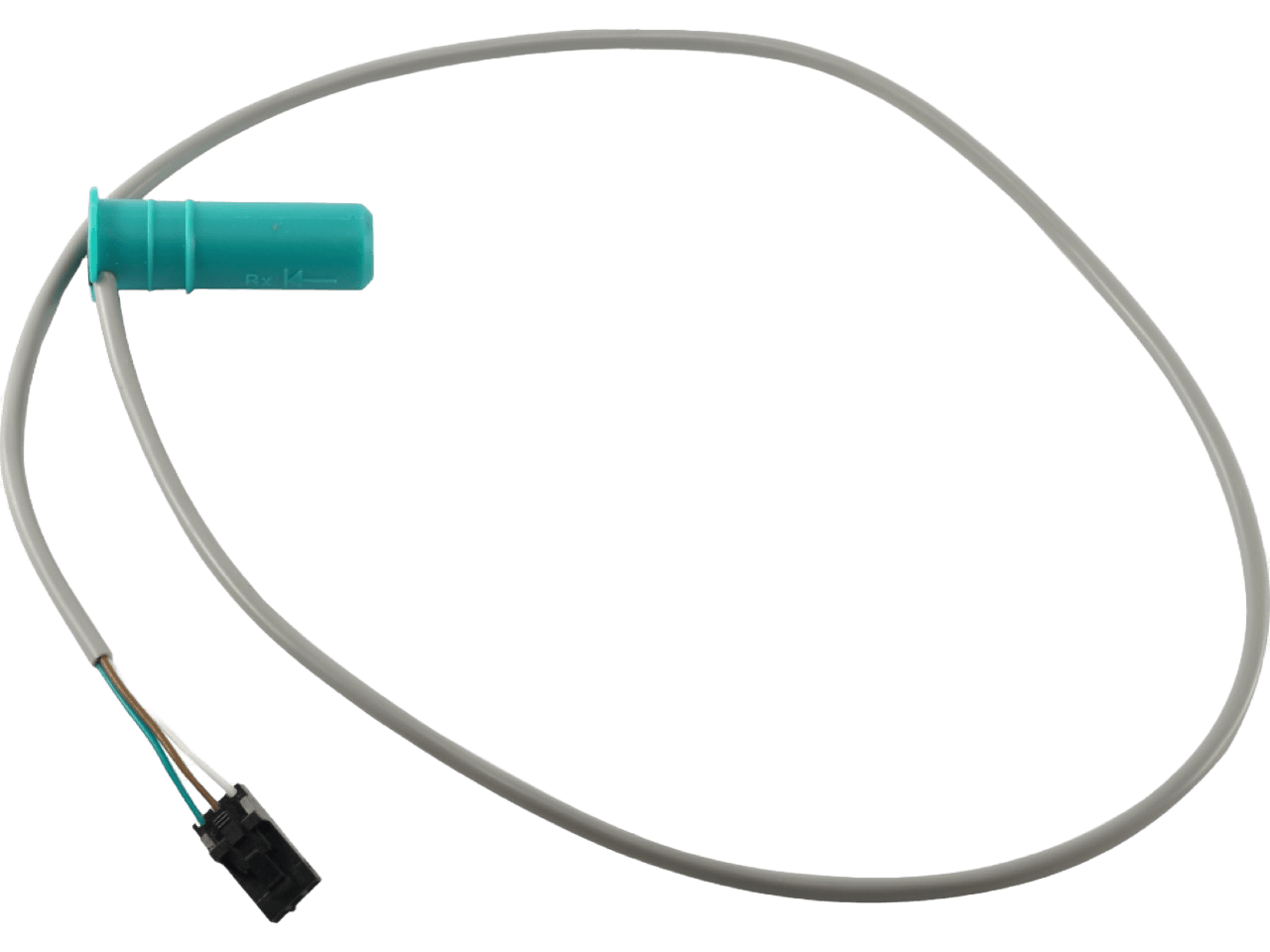

The FRABA VITECTOR OSE-S 6601 sensor set consists of a transmitter (Tx) and a receiver (Rx) for optical sensing edges. For an electrical connection, the sensors are equipped with a top-quality PVC Cable (length: transmitter - 6.5 m and receiver - 0.5 m) and pre-assembled GfA plugs. The sensors are based on the original FRABA OSE technology and provide the well-known OSE-signal, which is implemented in many controllers.

Warning:

The 4-digit sequence of numbers used on the displays shows the sensor's manufacture date in week / year format. For example, 0118 shows the sensor was produced in the first calendar week (01) of 2018.

Properties
Additional Functions: geeignet für Batteriesysteme
Cable Length: 6.5 / 0.5 m
Connection Type: GfA-Plug
Diameter: 11 mm
Max. Operating Temperature: +75 °C
Min. Operating Temperature: -20 °C
Output: OSE
Protection Class: IP 68
Range: 10 m
Supply Voltage: DC 4-28 V
