Spiral Cable Coil Cord "Industrial Duty" 4x0,25mm² Extended Length 3,5m

€29.90*

in stock

Product number: TA0500015
Picture can deviate from the original

Other customers also bought

Best Seller
Spiral Cable Coil Cord "Industrial Duty" 5x0,25mm² Extended Length 3,5m
€24.90*
plus VAT

in stock

Product information "Spiral Cable Coil Cord "Industrial Duty" 4x0,25mm² Extended Length 3,5m"

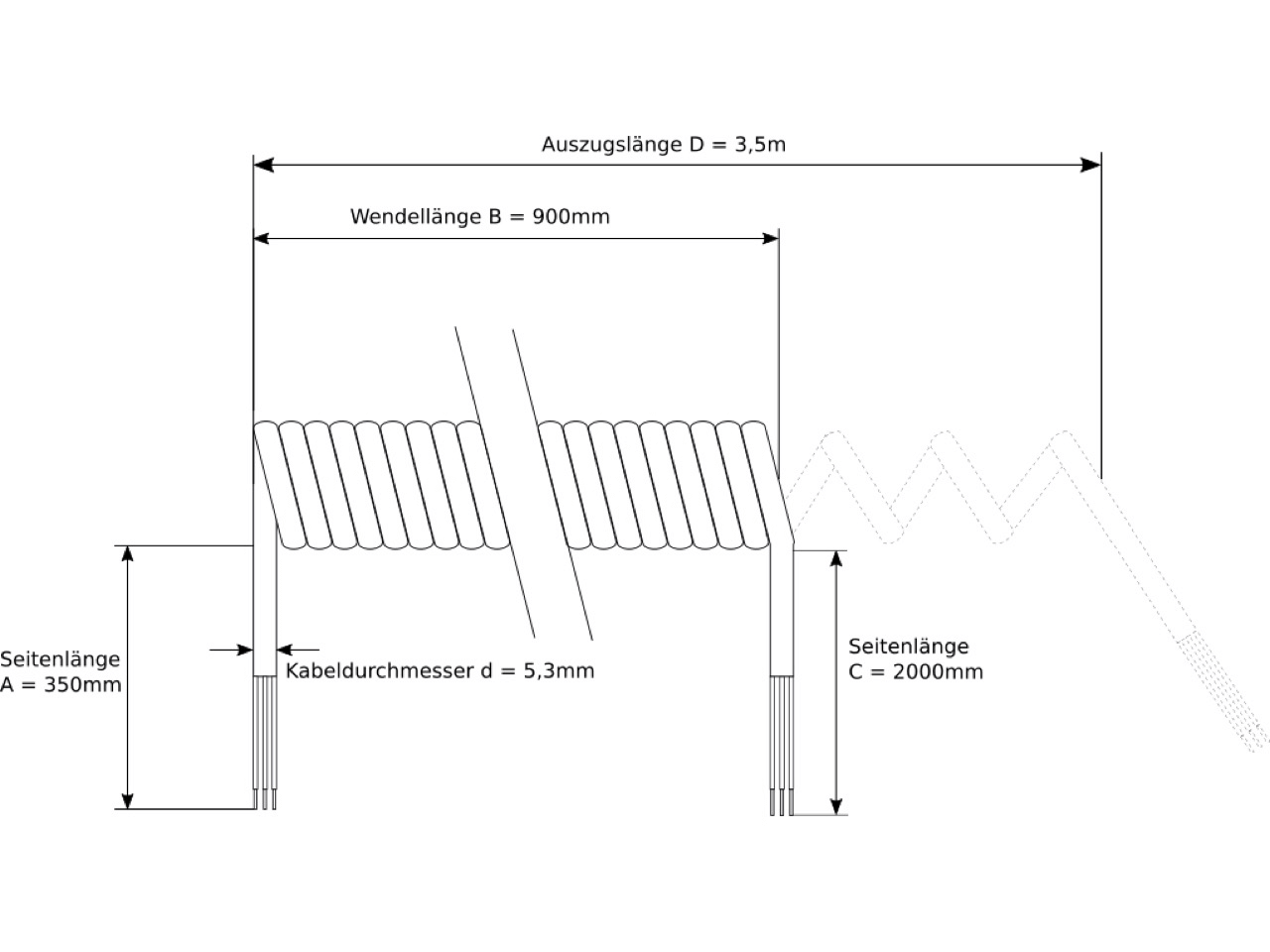

Coil cord for doors, black, cable configuration: fine-stranded 4x0,25mm², Lif9Y11Y, PP/ TPU Ether, dimensions: left end = 350mm, coil length = 900mm, right end = 2000mm, max. extension length 3,5m

Description:

The coil cord was developed especially for use on doors to connect the sensors and switches on the door leaf.

Properties:

  • Due to the 900mm-long spiral block, the coil cable can be extended to a length of up to 3.5m
  • The 4-core cable installation and a 0.25mm² conductor cross-section means the coil cord has enough strands for e.g. the safety edge and slack-rope switches.
  • Can be installed universally on doors from various manufacturers
Properties

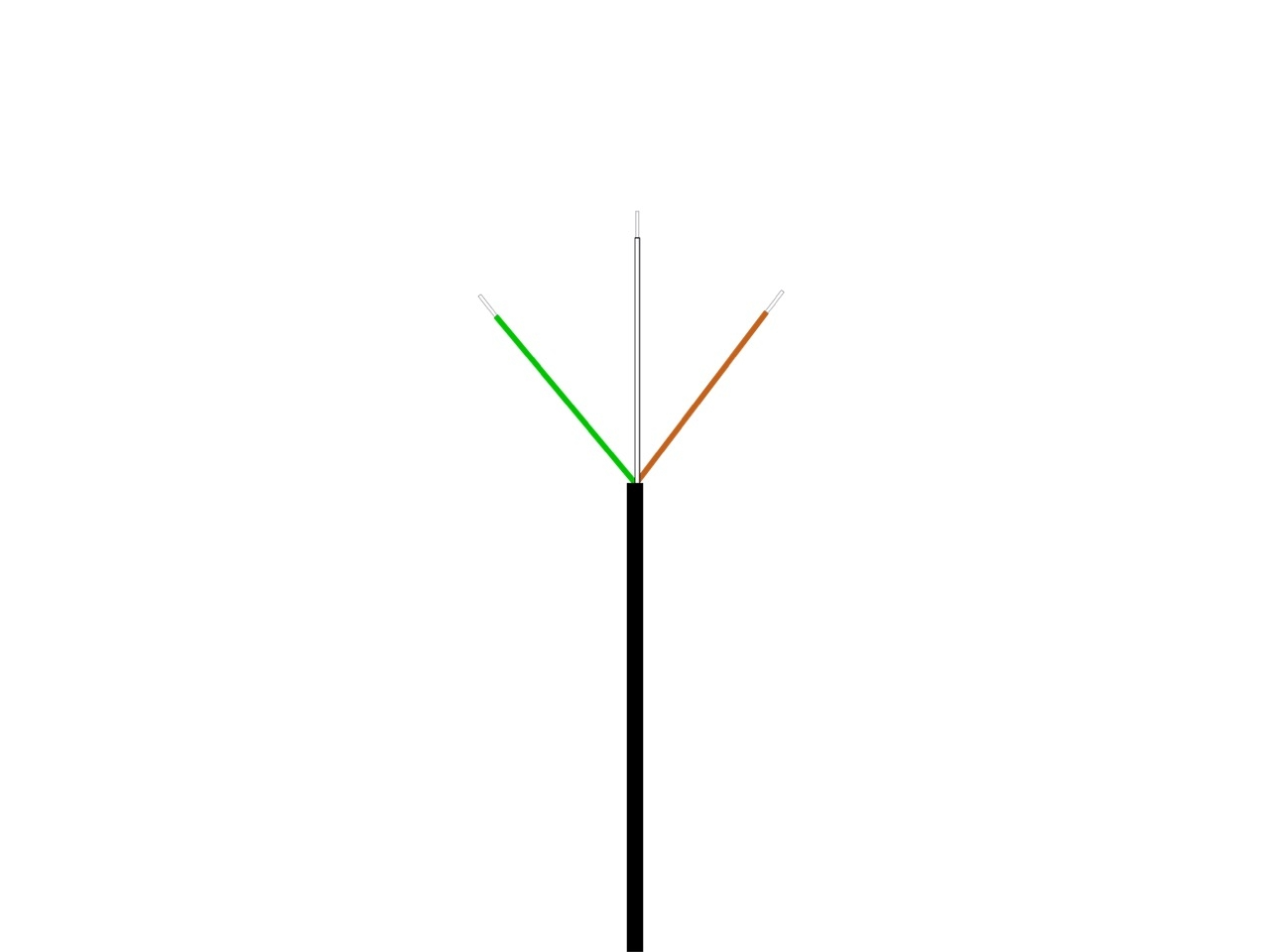

Cable Setup: 4 x 0.25 mm²
Extension Length: 3500 mm
Länge Anschlußleitung (steuerungsseitig): 2000 mm
Länge Anschlußleitung (torseitig): 350 mm
Material: TPU/TPU
Max. Operating Temperature: +90 °C
Min. Operating Temperature: -40 °C
