Spiral Cable Coil Cord "Industrial Duty" 5x0,25mm² Extended Length 3,5m

Best Seller

€24.90*

in stock

Product number: TA0500017
Picture can deviate from the original
prouct.usp1.image

Technical Support Hotline +44 115 7180691

prouct.usp4.image

Only 100% New and Original Parts

prouct.usp5.image

Special Prices available for Door Dealers and Resellers. Contact us!

prouct.usp8.image

Stocked Products Ship within 24h

Product information "Spiral Cable Coil Cord "Industrial Duty" 5x0,25mm² Extended Length 3,5m"

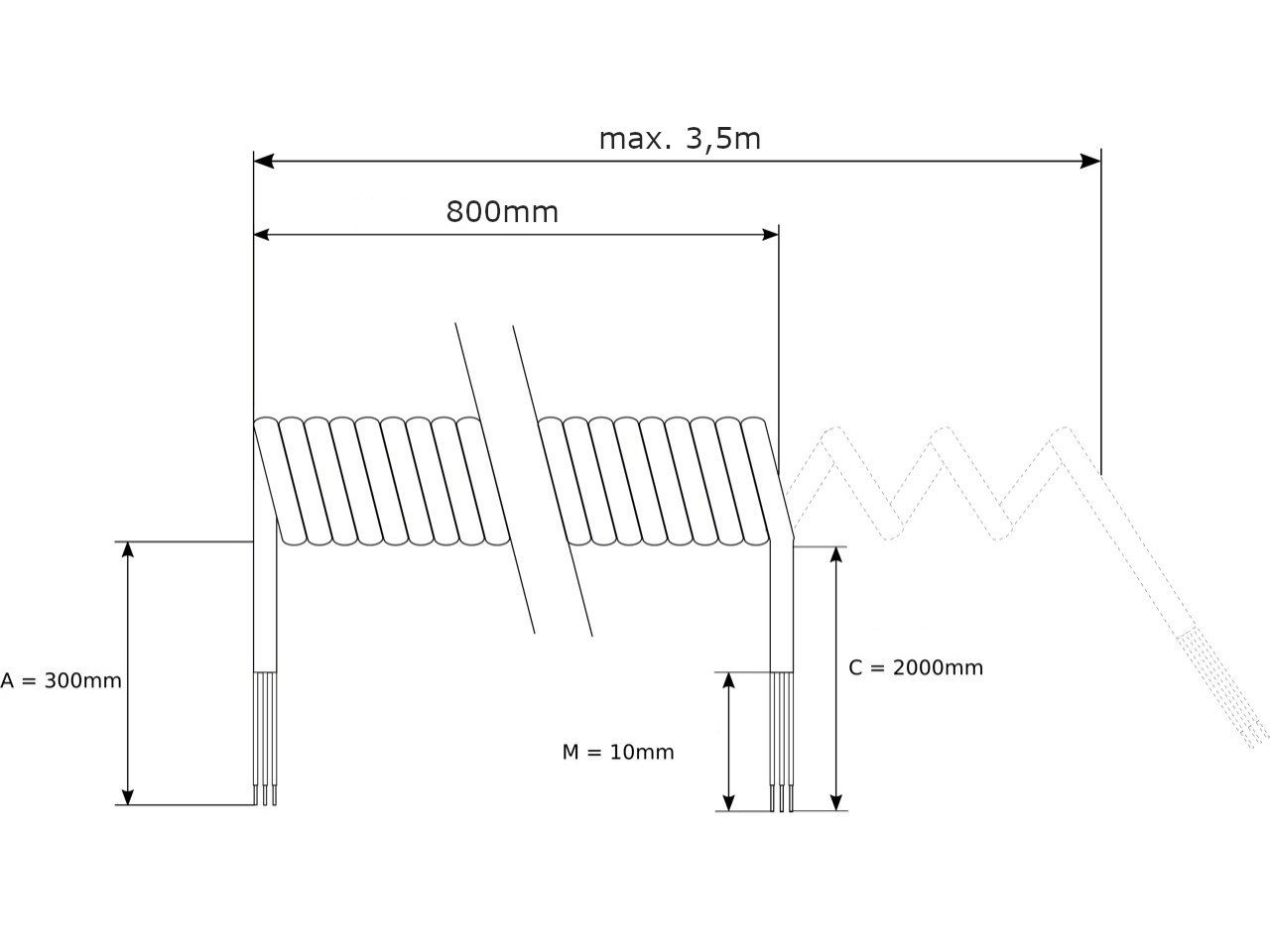

Coil cord for doors, PUR/ PUR, black, cable configuration: fine-stranded 5x0,25mm², Li11Y11Y, dimensions: left end = 300mm, coil length = 800mm, right end = 2000mm, max. extension length 3,5m

Description:

The coil cord was developed especially for use on doors to connect the sensors and switches on the door leaf.

Properties:

  • Due to the 800mm-long spiral block, the coil cable can be extended to a length of up to 3.5m.
  • The 5-core cable installation and a 0.25mm² conductor cross-section means the helical cable has enough strands for e.g. the safety edge and slack-rope switches
  • Sheath and core insulation made of high-grade Polyurethane (PUR)
  • Can be installed universally on doors from various manufacturers
Properties
Cable Setup: 5 x 0.25 mm²
Extension Length: 3500 mm
Länge Anschlußleitung (steuerungsseitig): 2000 mm
Länge Anschlußleitung (torseitig): 350 mm
Material: TPU/TPU
Max. Operating Temperature: +90 °C
Min. Operating Temperature: -40 °C
