Torsion Spring Winding Tools
Winding and unwinding torsion springs is one of the most demanding tasks involved in the installation, maintenance and repair of sectional doors. High spring forces and repetitive work processes make not only experience but also the right tools essential.
Professional tools for winding torsion springs such as SureWinder and BruteWinder have been specifically developed to make this task easier. Using a suitable drill, the spring is wound or unwound via a worm gear. Compared with manual winding using winding bars, this can reduce the physical effort required and significantly speed up the work process.
For door installers, technicians and service professionals who regularly work on residential, commercial or industrial doors, these torsion spring winding tools are therefore a valuable addition to a professional tool kit.
delivery time: 6-10 working days
delivery time: 6-10 working days
Wind and unwind torsion springs more efficiently
When a torsion spring is tensioned using the conventional method, the required preload is built up step by step using winding bars. During regular installation and service work, this results in considerable repetitive strain on the arms and shoulders.
SureWinder and BruteWinder are designed to make this specific task easier. The torsion spring winding tool is positioned on the spring or winding cone and driven by a suitable drill. The integrated worm gear enables controlled transmission of the required torque.
In addition to reducing physical strain, working time is an important factor for professional users. Technicians who regularly wind and unwind torsion springs on sectional doors can complete recurring tasks more quickly. For installation and service companies, a professional spring winding tool can therefore provide both ergonomic and economic benefits.

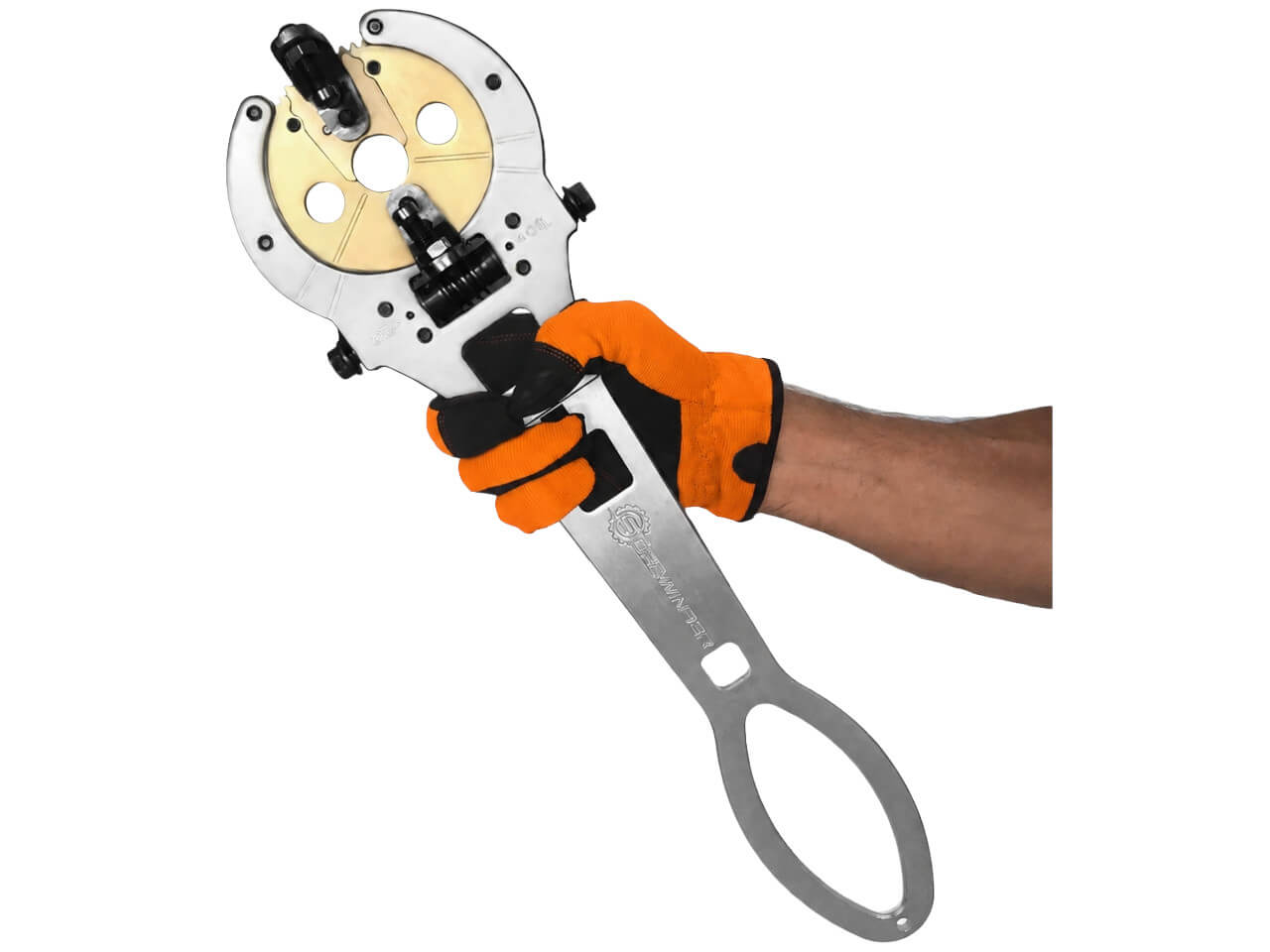

SureWinder – compact for residential and light commercial doors
The SureWinder is the more compact solution for torsion springs used in residential and light commercial applications.
Its strength lies in the combination of performance, compact design and relatively low space requirements. This makes the SureWinder particularly suitable for typical sectional door systems used in garages and smaller commercial applications.
With a maximum torque of approximately 116 Nm, spring diameters of approximately 51 to 95 mm and a 1" spring shaft, the SureWinder covers a wide range of common residential and light commercial applications.
For installers and service companies that mainly wind torsion springs on garage doors and smaller sectional doors, the SureWinder is generally the more compact and practical choice.
→ View SureWinder and discover technical details

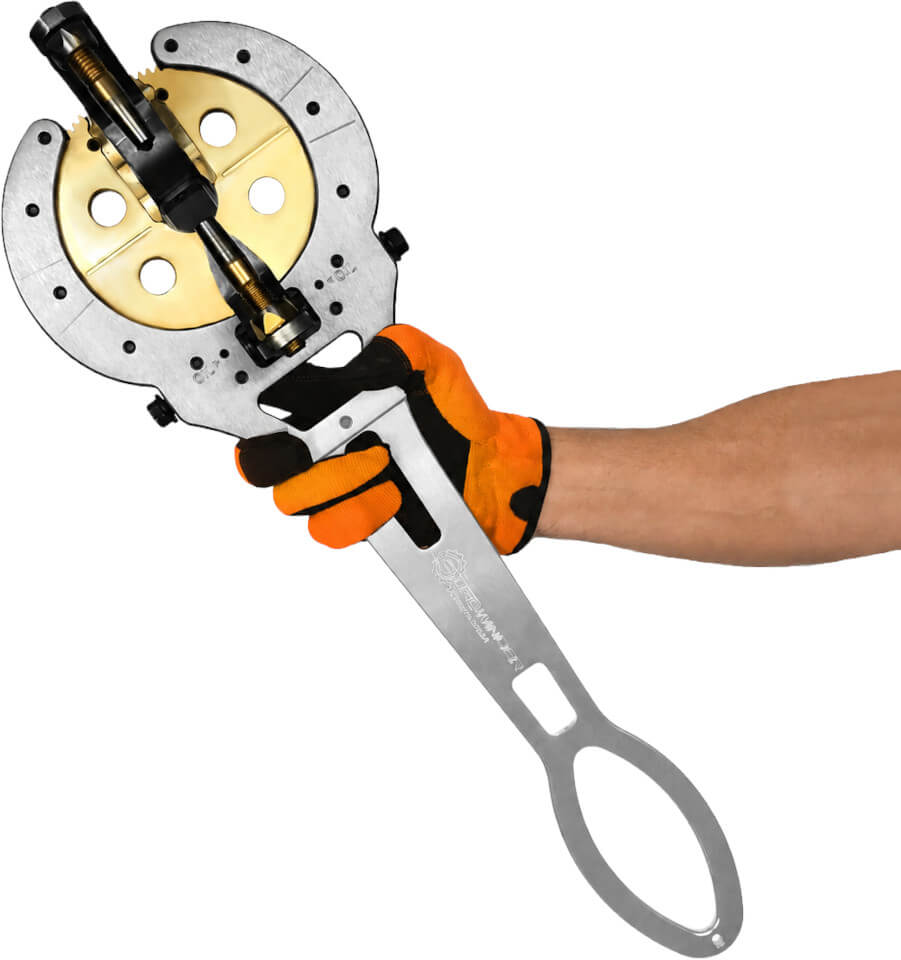

BruteWinder – torsion spring winding tool for industrial doors
The BruteWinder is designed for larger torsion springs and correspondingly higher spring forces. Its primary applications are larger commercial and industrial doors.
With a maximum torque of approximately 285 Nm, it offers significantly greater power reserves than the SureWinder. It is suitable for spring diameters up to approximately 152 mm and for spring shafts with diameters of 1" and 1.25".
The higher performance comes with larger dimensions and greater space requirements. For small garage or standard doors, the BruteWinder will often be oversized. On heavy industrial and commercial doors, however, it can fully utilise its additional capacity.
The BruteWinder is therefore primarily intended for professional door installers and service technicians who regularly wind and unwind large torsion springs on industrial doors.
→ View BruteWinder and discover technical details
SureWinder or BruteWinder – which spring winding tool is right for you?
SureWinder and BruteWinder operate according to the same basic principle but are designed for different door sizes and spring forces.
| Feature | SureWinder | BruteWinder |
|---|---|---|
| Typical application | Garage & light commercial doors | Commercial & industrial doors |
| Max. torque | approx. 116 Nm | approx. 285 Nm |
| Max. wire diameter | approx. 9 mm | approx. 12 mm |
| Spring diameter | approx. 51–95 mm | approx. 51–152 mm |
| Spring shaft | 1" | 1" & 1.25" |
| Min. shaft-to-wall clearance | approx. 64 mm | approx. 89 mm |
| Key advantage | Compact and easy to handle | High power reserves |
Which tool for winding torsion springs is the right choice depends primarily on the types of doors you work with on a daily basis.
For garage doors and lighter commercial sectional doors, the SureWinder offers a compact solution with sufficient power reserves. For technicians who regularly work on large commercial and industrial doors, the BruteWinder provides the additional capacity required for higher spring forces.
Companies that install and service both garage doors and large industrial door systems can cover the respective applications with both tools.
Professional tools for torsion springs
High forces are involved when winding torsion springs. Professional users should therefore consider their working processes from both an ergonomic and economic perspective. Specialised torsion spring winding tools can reduce physical effort, save working time and make recurring installation and service tasks easier.
SureWinder and BruteWinder combine a controlled working process with reduced physical strain and significant time savings. For professionals who regularly wind and unwind torsion springs on sectional doors, these specialised tools can contribute to more efficient and ergonomic installation and service work.
SureWinder for compact standard applications, BruteWinder for higher spring forces: the right spring winding tool ultimately depends on the range of doors and springs encountered in daily work.
