D+H CPS-P1-040-0202-B RWA Compact Control Unit 40 A

The D+H CPS-P1-040-0202-B is a high-performance smoke and heat extraction control unit for controlling 24 V DC smoke and heat extraction systems. With an output of 24 V DC / 40 A, two detector lines and two actuator groups, it is suitable for larger smoke extraction systems with high power requirements. The integrated emergency power supply and comprehensive smoke and heat extraction and ventilation functions ensure reliable operation.

The control unit provides a total of 40 A of output power, with each drive group capable of handling up to 20 A. Up to 8 smoke and heat extraction control points and 14 approved fire detectors can be connected per line. Parameterisation is carried out via DIP switches. Features such as cable monitoring, dual smoke detector interlock, smoke and heat extraction night-time operation, comfort ventilation and connections for wind and rain sensors are included.

The D+H CPS-P1-040-0202-B meets the requirements of modern smoke and heat extraction systems and is certified in accordance with ISO 21927-9, DIN EN 12101-10, VdS 2581, VdS 2593, VdS 2594, VdS 2344 and the building regulations set out in DIN 18232-9.

Features

• Compact smoke and heat extraction control unit for 24 V DC systems

• Total output power: 40 A

• 2 detector lines and 2 actuator groups

• 72-hour emergency power supply (batteries available separately)

• Configuration via DIP switches

• Circuit monitoring and dual smoke detector interlock

• Comfort ventilation functions

• Connection for wind and rain sensors

• Tested in accordance with DIN EN 12101-10, ISO 21927-9 and VdS

Technical data

• Supply voltage: 230 V AC, 50 Hz

• Power consumption: 1010 VA

• Standby power consumption: < 6 W

• Output: 24 V DC / 40 A

• Monitoring operating mode: Continuous operation

• Alarm/ventilation operating mode: Short-term operation (30% duty cycle)

• Lines: 2

• Drive groups: 2

• Protection rating: IP54

• Ambient temperature: -5 °C to +40 °C

• Housing: Plastic

• Colour: Light grey (similar to RAL 7035)

• Dimensions (W × H × D): 400 × 500 × 245 mm

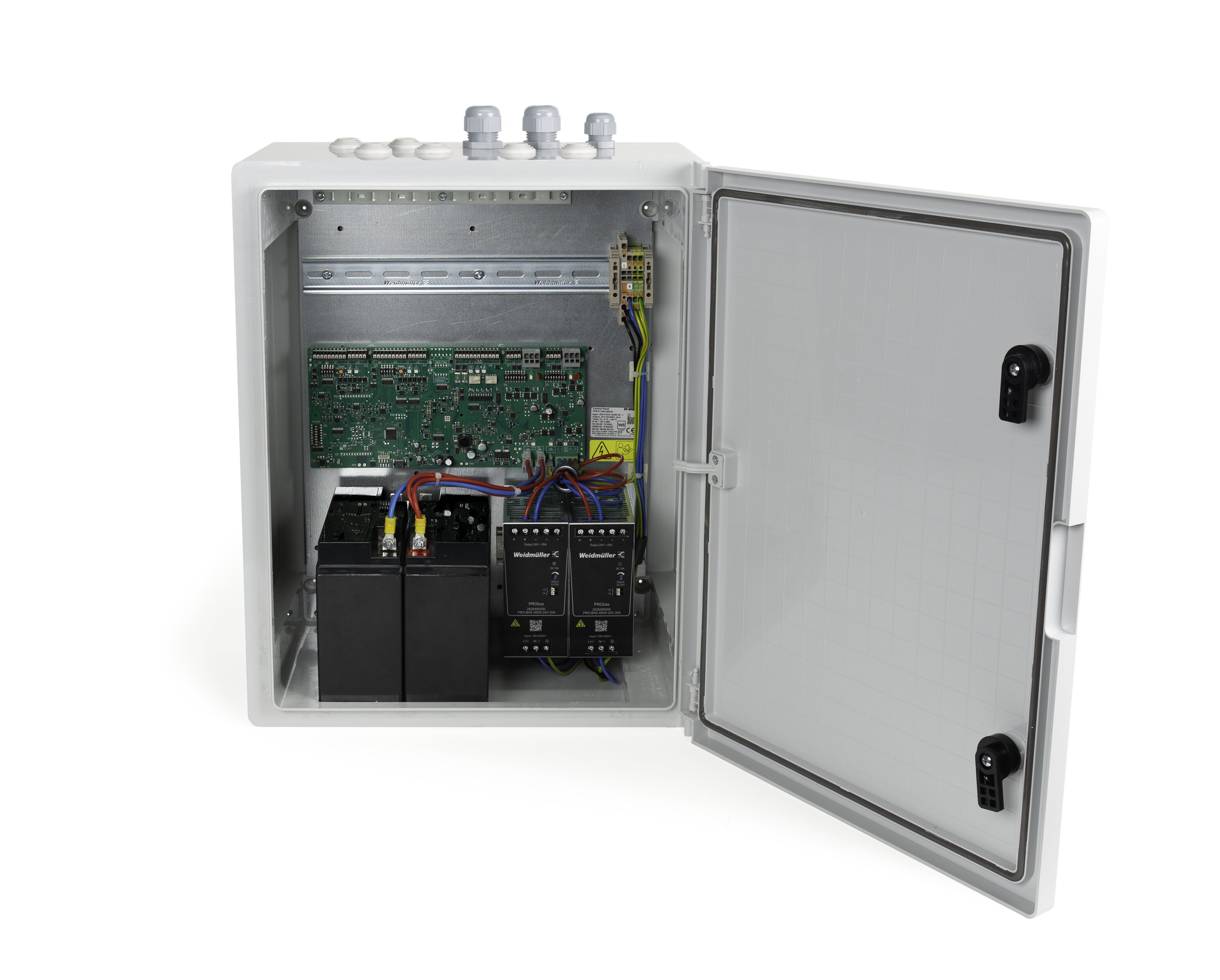

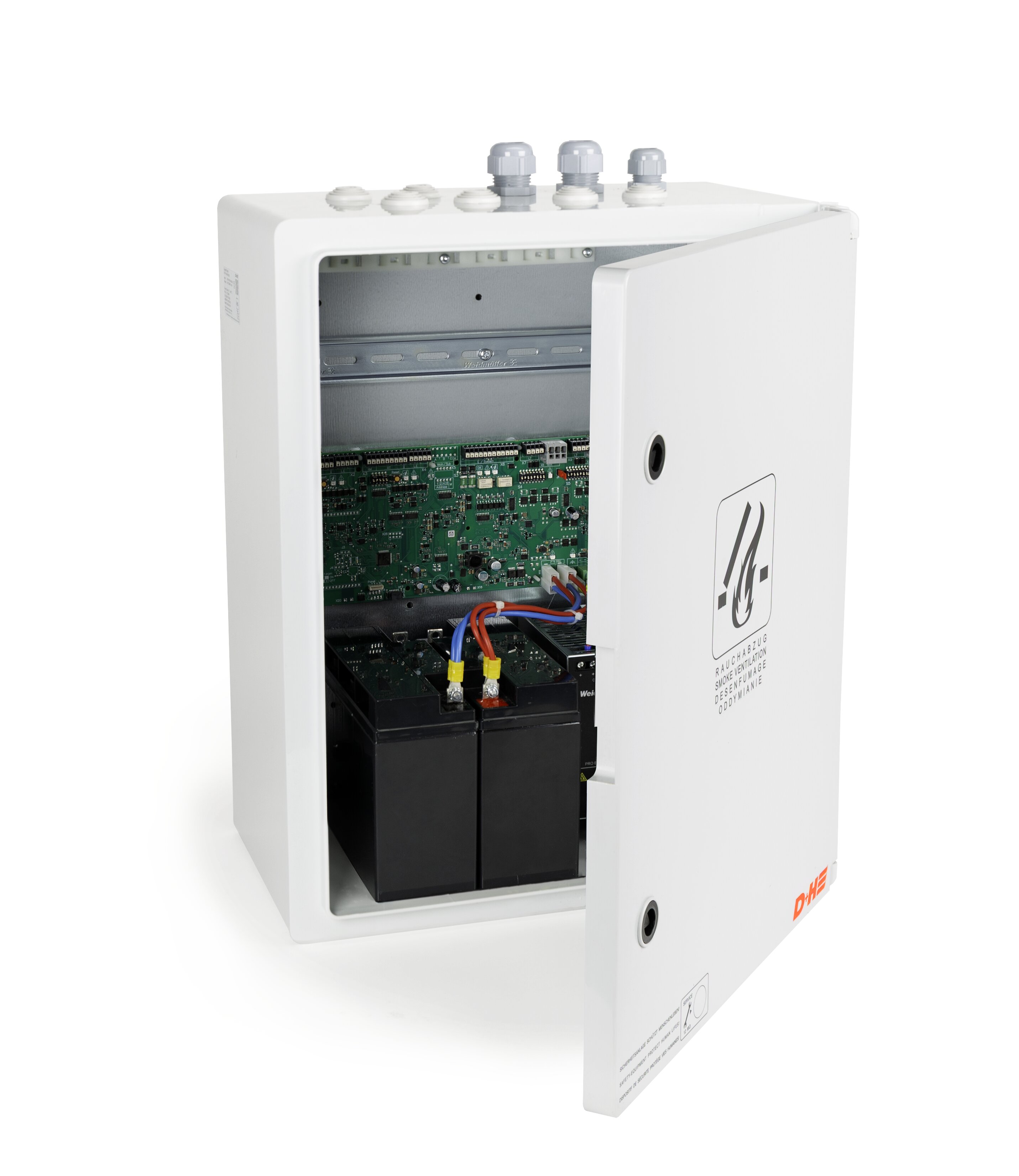

Scope of supply

• D+H CPS-P1-040-0202-B central circuit board

• Lockable plastic housing with key

• Wired switching power supplies

• Terminal blocks for mains connection

• Without rechargeable batteries (rechargeable batteries must be ordered separately)
