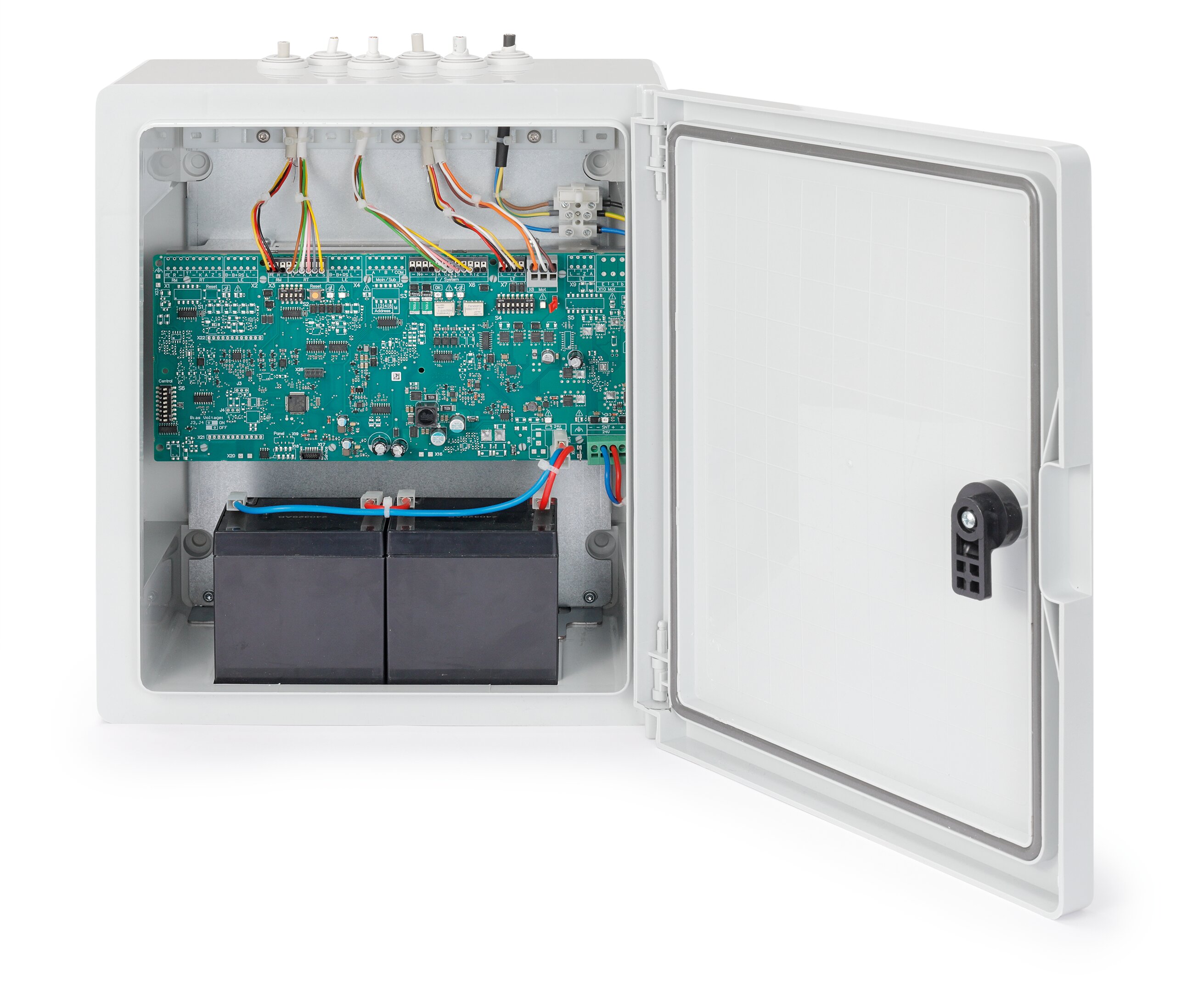

D+H CPS-P1-010-0101-B RWA control unit, Compact, 10 A
Other customers also bought
delivery time: 6-10 working days
The D+H CPS-P1-010-0101-B is a compact smoke and heat extraction control unit for controlling 24 V DC smoke and heat extraction systems. With an output of 24 V DC / 10 A, a detector line and a motor group, it is suitable for smoke extraction and daily ventilation. The integrated emergency power supply ensures reliable operation even in the event of a mains power failure.
The control unit supplies an actuator group with up to 10 A. Up to 8 smoke and heat extraction control points and 14 approved fire detectors can be connected per line. Parameterisation is carried out via DIP switches. Features such as line monitoring, dual smoke detector interdependence, RWA night-time operation, comfort ventilation, as well as connections for wind and rain sensors and alarm devices are included.
The D+H CPS-P1-010-0101-B meets the requirements of modern smoke and heat extraction systems and is certified in accordance with ISO 21927-9, DIN EN 12101-10, VdS 2581, VdS 2593, VdS 2594, VdS 2344 and the building regulations set out in DIN 18232-9.
Features
Compact smoke and heat extraction control unit for 24 V DC systems
Output power: 10 A
1 detector line and 1 actuator group
72-hour emergency power supply (batteries available separately)
Configuration via DIP switches
Circuit monitoring and dual smoke detector interdependence
Comfort ventilation functions
Connection for wind and rain sensors
Tested in accordance with DIN EN 12101-10, ISO 21927-9 and VdS
Technical data
Supply voltage: 230 V AC, 50 Hz
Power consumption: 290.7 VA
Standby power consumption: < 5 W
Output: 24 V DC / 10 A
Residual ripple: < 5 %
Protection rating: IP54 (VdS IP30)
Ambient temperature: -5 °C to +40 °C
Housing: Plastic
Colour: Light grey (similar to RAL 7035)
Dimensions (W × H × D): 300 × 350 × 165 mm
Battery type: 2 × Type 18
Contents of delivery
D+H CPS-P1-010-0101-B central circuit board
Lockable plastic housing with key
Wired switching power supply
Batteries not included (Batteries must be ordered separately)
