GfA Elektromaten Door Control TS 971 with CEE 3N~400V (5 pole)

Best Seller Reduced Shipping Rate

€297.00*

in stock

Product number: TA0200004
Picture can deviate from the original
prouct.usp1.image

Technical Support Hotline +44 115 7180691

prouct.usp2.image

Shipping only 9,90 EUR within EU, to Switzerland and Norway

prouct.usp3.image

Shipping today for Orders received before 15:00*

prouct.usp4.image

Only 100% New and Original Parts

Other customers also bought

GfA Elektromaten Coil Cord Set with Junction Box Pluggable
€54.00*
plus VAT

in stock

Best Seller Reduced Shipping Rate
GfA Elektromaten Replacement PCB for Door Control TS 971
€249.00*
plus VAT

in stock

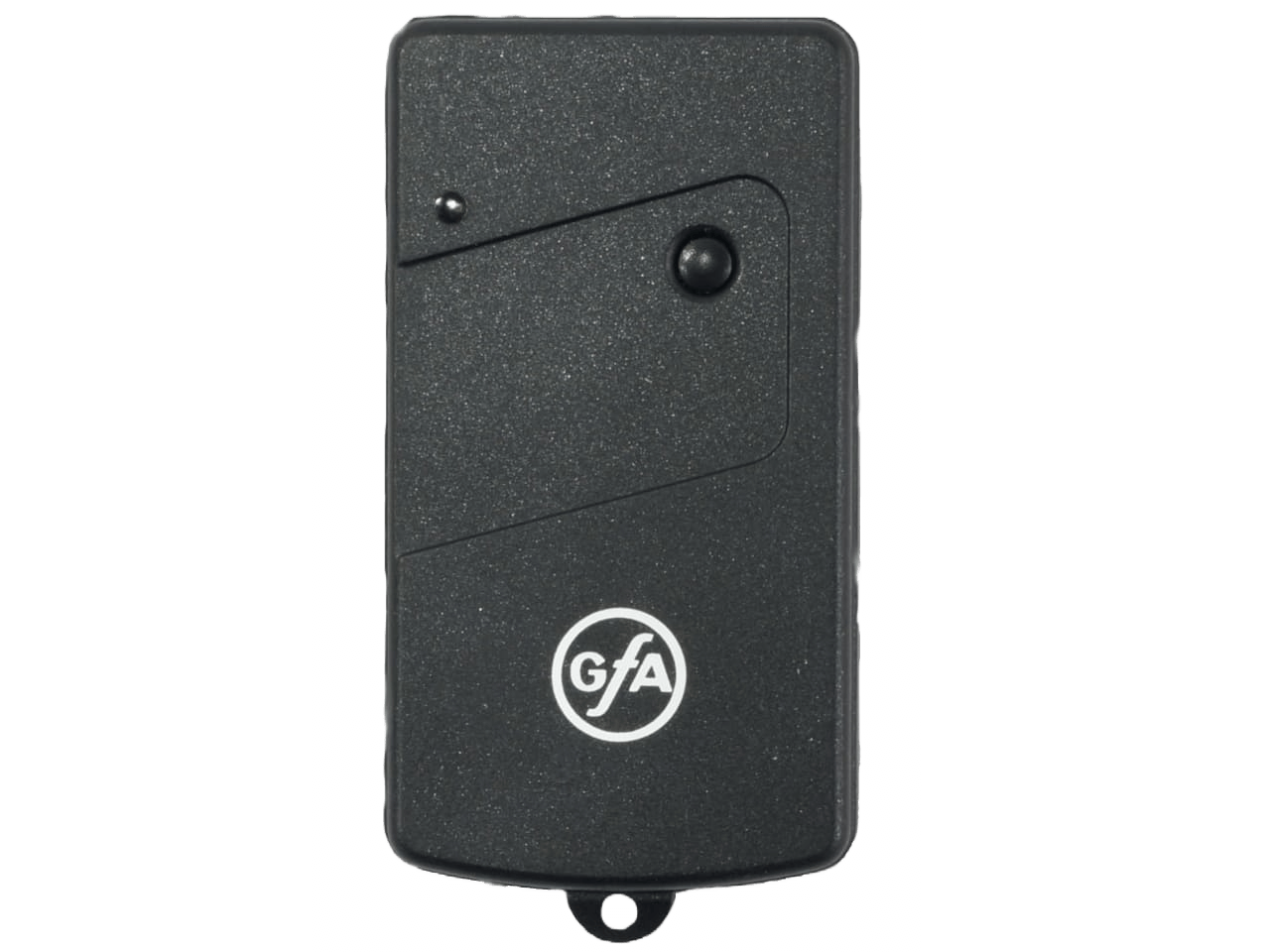

GfA Elektromaten Transmitter SKX1LC 1-Channel
€33.00*
plus VAT

in stock

GfA Elektromaten Wireless Safety Device WSD-Module
€71.00*
plus VAT

in stock

GfA Elektromaten GfA-Stick
€55.00*
plus VAT

in stock

Best Seller
Spiral Cable Coil Cord "Industrial Duty" 5x0,25mm² Extended Length 3,5m
€24.90*
plus VAT

in stock

Product information "GfA Elektromaten Door Control TS 971 with CEE 3N~400V (5 pole)"

Door control unit TS 971 for GfA Elektromaten drives with digital or mechanical limit switch, automatic or constant pressure to close operation, with integrated radio system

Description:

The door control unit TS 971 by GfA Elektromaten is an automatic control panel for use with GfA Elektromaten drives with digital (DES) or mechanical (NES) limit switch system. The TS 971 control panel comes with an integrated radio receiver for 434 MHz radio products of different manufacturers. In addition, the TS 971 has an integrated receiver, that can be used for the wireless transmission of the door safety edge in combination with the optional WSD module.

Properties:

  • Protection class IP54 with CEE plug or IP65 for direct wiring
  • Integrated push button for UP-STOP-CLOSE commands
  • Integrated radio receiver for 434 MHz wireless products
  • Parameter setting via selector switch with digital display
  • Two independent, programmable relay contact, e.g. for red-green traffic-lights
  • Operating modes: hold-to-run or self-hold/ automatic mode
  • Automatic detection of safety edge type (Optical edge FRABA VITECTOR, resistive edge 8k2 or NC-contact type 1k2 with testing)
  • Automatic timer-to-close
  • Adjustable intermediate open position, e.g. half open, venting position
  • Automatic ground adjustment (only DES) to compensate for rope-stretch or subsequent change in ground height

Due to the pre-assembled, pluggable motor cable, the TS 971 can easily be connected to the drive. A faulty wiring is hereby avoided, thus minimizing installation errors and time. The connection cable can be wired into the control panel housing from either top or bottom. In addition to the motor cable, the TS 971 can work with a multitude of additional inputs, e.g. rope-switches, photo eyes, sensing edges and many more.

The TS 971 by GfA Elektromaten comes with the function "radio/ wireless" already integrated, the control panel has an integrated receiver for remotes from different manufacturers using a frequency of 434 MHz. An additional radio receiver is not needed. In addition the wireless sensing edge transmission system WSD is already integrated on the control panel side. The WSD system is a wireless transmission system for sensing edges and allows monitoring and transmission of the most common sensing edge types, as well as pedestrian door and rope tension switches. The use of a coil cord is no longer needed. Of course the TS 971 also allows for connection with a coil cord.

The TS 971 has comfort functions and allows installation in more demanding applications. For standard-applications GfA Elektromaten offers the panel type TS970.

Properties
Additional Functions: Partial Opening, Timer-to-Close
Max. Operating Temperature: +50 °C
Min. Operating Temperature: -10 °C
Modes of Operation: Automatic, Hold-to-Run
Programmable Relay Contact: 2
Protection Class: IP 54
Radio Function: Optional
Sensor Inputs: Airwave Switch, Optical Sensing Edges, Photo Eye, Resistive Sensing Edge (8k2)
Supply Voltage: 1N~230 V, 3N~400 V, 3~230 V
