Marantec Comfort 260 speed bi-linked Garage door opener with guide rail

Marantec Garage door opener set Comfort 260 speed bi-linked, delivery incl. 1 x remote Digital 572 2-channel 868 MHZ and operator rail SZ11 for garage door openers, 3.08m profile length, 0.8mm thickness, with toothed belt, 3-part

Marantec Comfort 260 speed bi-linked – The powerful garage door opener in a complete set

The Marantec Comfort 260 speed bi-linked is the perfect solution for modern garage doors with a door leaf weight of up to 110 kg. Thanks to its innovative features, high speed and well-thought-out design, this garage door opener offers comfort, safety and efficiency for everyday use.

Features of the Comfort 260 speed: Drive

• Compact DC motor with soft start and soft stop for particularly gentle and careful opening and closing.
• Adjustable opening and closing speeds for precise and fast control.
• Integrated control with illuminated LCD display for easy programming and intuitive operation.

Structure and connection

• Versatile connection options for buttons, photo eyes, pedestrian door switches and other safety components.
• MS-Bus interface for Extension boards and hand-held programmers.
• Practical 24 V DC output for additional devices.

Operation

• Simple programming and status display on the LCD display.
• Convenient control via bi-linked radio technology.

Functions

• Energy-efficient power-saving technology.
• Electronic safety mechanisms such as blocking protection, end stop and reverse.
• Individually adjustable intermediate positions, soft run speeds and door speeds.
• Maintenance interval display and cycle counter for optimal operation monitoring.

Technical data:

• Traction and pressure force: 650 N
• Running speed: 22 cm/s
• Maximum cycles per hour: 3
• Maximum cycles per day: 20
• Maximum door weight: 110 kg
• Supply voltage: 230 V
• Lighting: 8-LED module

Set contents:

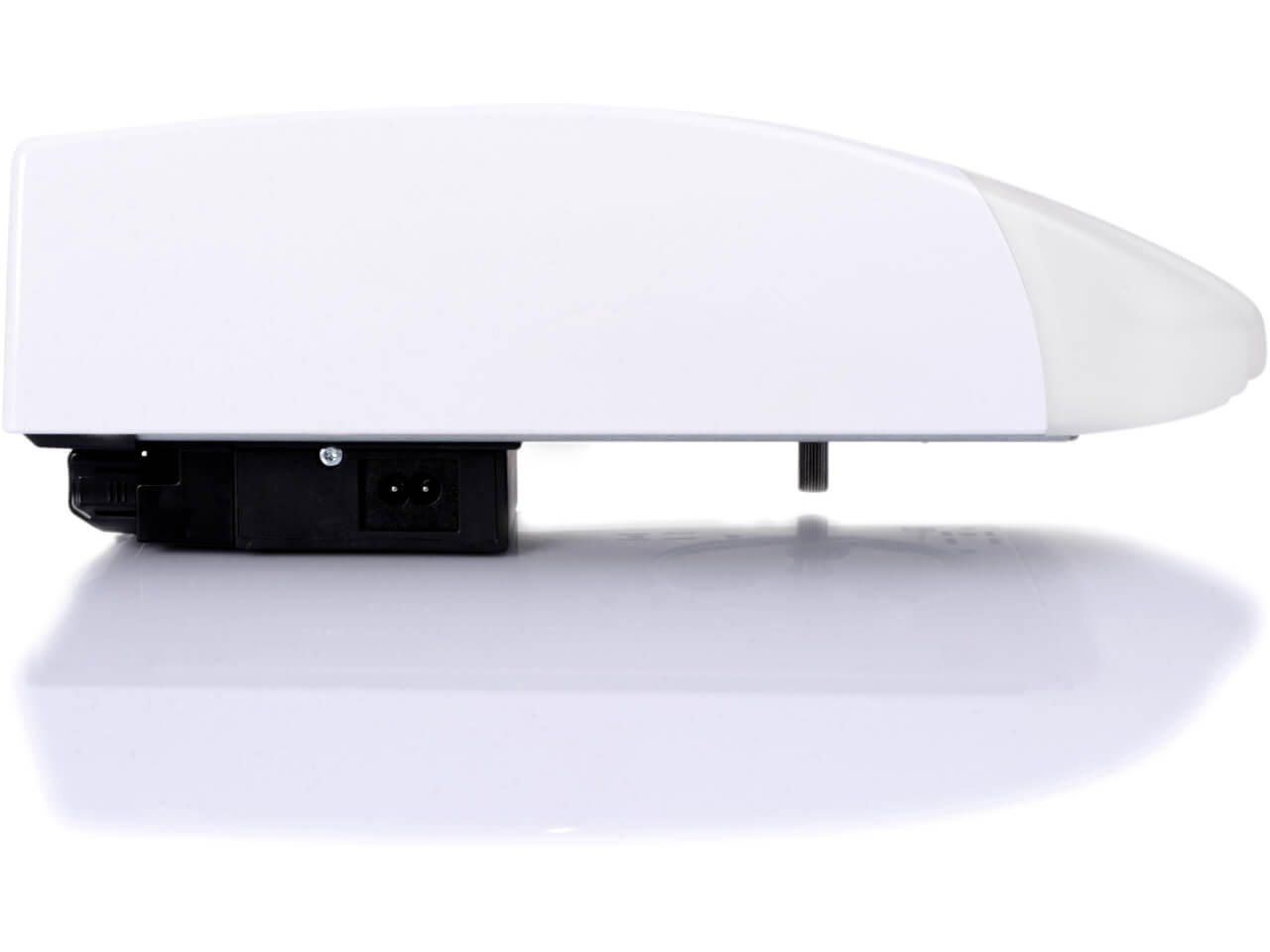

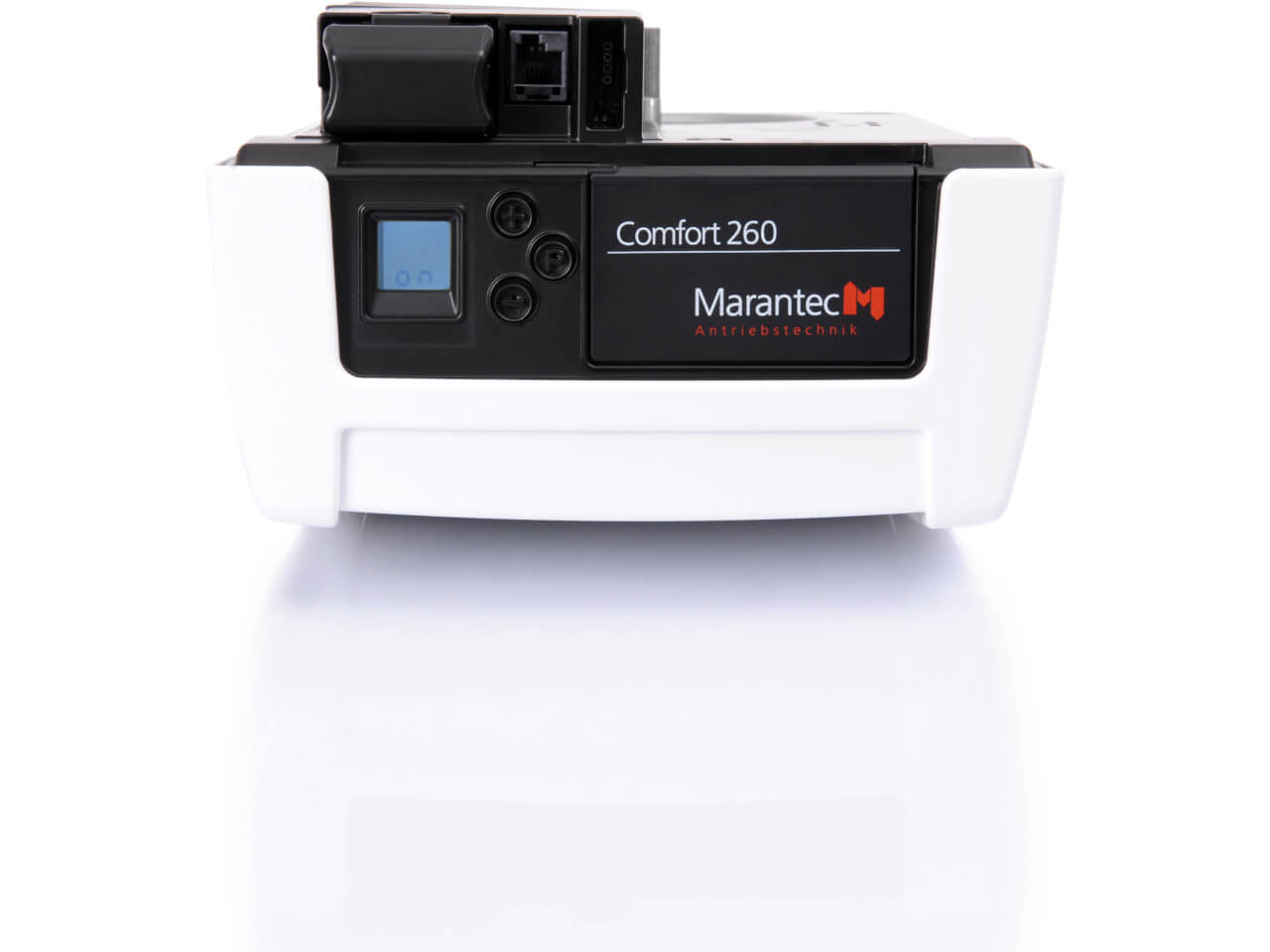

1. Comfort 260 speed motor unit with integrated control.
2. Digital 921 module receiver, 868 MHz bi-linked.
3. Digital 572 micro remote, 2-channel, 868 MHz bi-linked.
4. 3-part running rail for easy installation.
5. universal installation set for up-and-over and sectional doors.
6. power cable with type C Europlug, 1,500 mm
