GfA Elektromaten SI63 25.15 NHK DES Ø30-Safedrive® 250Nm with Emergency Hand Crank


in stock

Product number: TA0100177
Picture can deviate from the original

Technical Support Hotline +44 115 7180691


Only 100% New and Original Parts


Special Prices available for Door Dealers and Resellers. Contact us!


Stocked Products Ship within 24h

Product information "GfA Elektromaten SI63 25.15 NHK DES Ø30-Safedrive® 250Nm with Emergency Hand Crank"

SI-ELEKTROMATEN, Drive for non-balanced doors which require an anti-fallback device, the patented safety brake is built into the gear, output torque 250Nm, output speed 15 rpm, hollow-shaft-Ø 30mm, supply voltage 3~230V/400V, with emergency hand crank for manual operation, digital limit switch DES, limit switch range E=20 revolutions max.


The GfA SIK-ELEKTROMATEN "Safedrive Compact" drive mounts are special drives for industrial doors than require an anti-fallback device.


  • Patented safety brake built into the gear

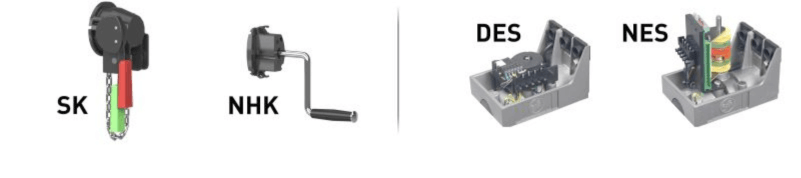

  • All models operate with a manual override on an emergency hand crank
  • All models contain a digital limit switch DES
  • Supply voltage: 3~230V/400V
Emergency Operation: Hand Crank
Hollow- / Output-Shaft (Ø): 30 mm
Limit Switch type: digital Limit Switch DES (GfA Elektromaten)
Limit Swtich Range: 20
Locking Torque: 510 Nm
Max. output speed CLOSE for frequency inverter operation: 15 min^-1
Max. output speed OPEN for frequency inverter operation: 26 min^-1
Output Speed: 15 min^-1
Output Torque: 250 Nm
Power: 0.55 kW
Supply Voltage: 3~230/400 V
max. Movements per Hour: 20
