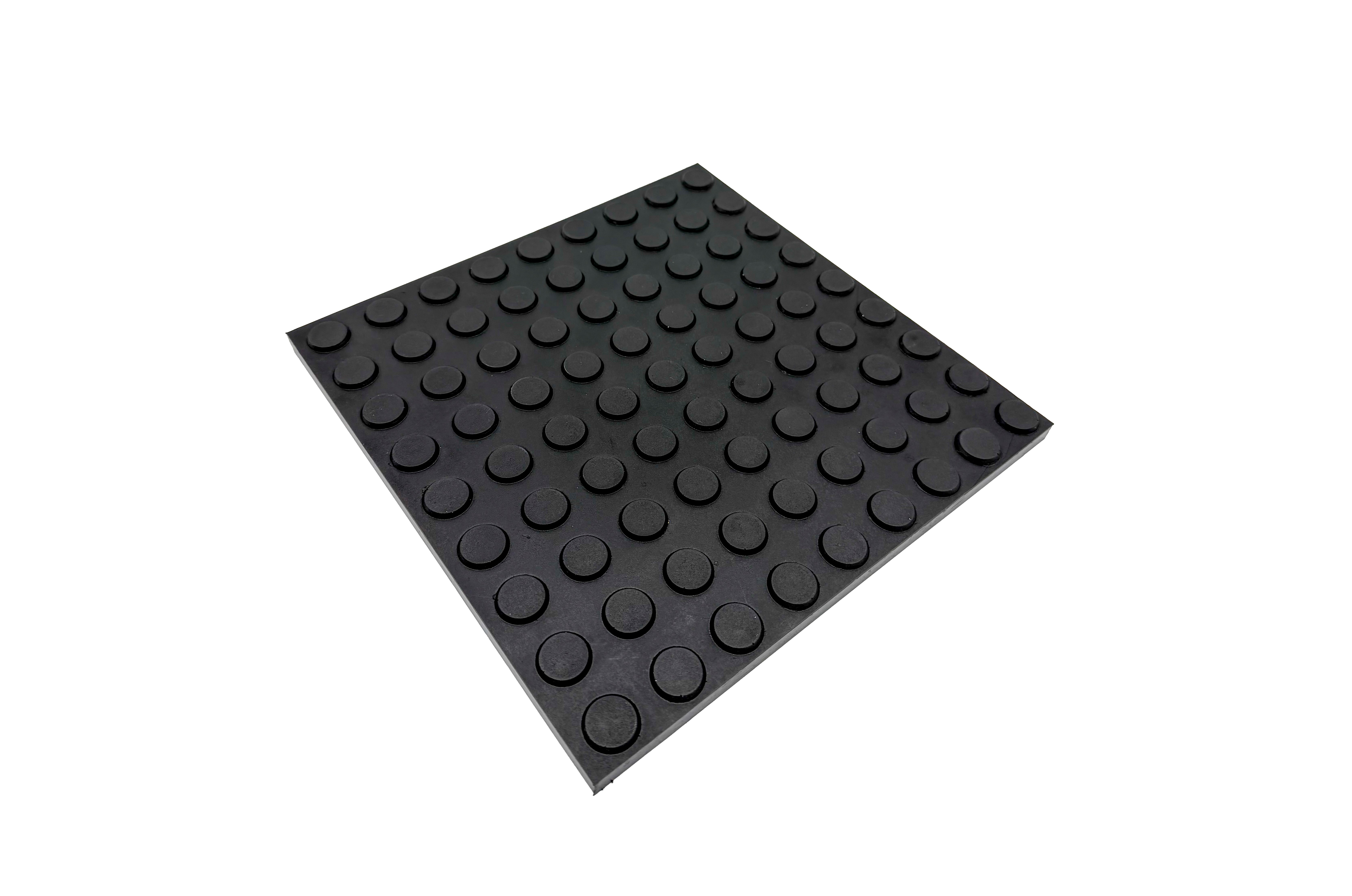

ASO Safety Sicherheitskontaktmatten Sentir mat, Noppenoberfläche, 500 x 1.000 mm

Name: ASO Safety Sicherheitskontaktmatten Sentir mat, Noppenoberfläche, 500 x 1.000 mm
Brand: ASO Safety
SKU: TA1001982
Price: 434.0 EUR
Availability: OutOfStock

Picture can deviate from the original

€434.00

*plus VAT and shipping

delivery time: 6-10 working days

Dimensions

1.000 x 1.000 mm

1.000 x 1.500 mm

500 x 1.000 mm

750 x 1.000 mm

Ramp rail

With molded ramp rail

Without ramp rail

Product number: TA1001982

Product information "ASO Safety Sicherheitskontaktmatten Sentir mat, Noppenoberfläche, 500 x 1.000 mm"

The SENTIR mat 14-1T4.0-NP is a high-quality safety contact mat from ASO Safety for surface monitoring on machines, robots and automated systems. Even slight movements are reliably detected.

Key features:

Robust PUR moulded construction with non-slip dotted surface
Size: 500 x 1,000 mm (plus ramp rail)
With moulded ramp rail (30 mm)
Fast response time < 25 ms for maximum protection
Dust and water jet protected (IP65) for industrial use
High load capacity up to 2000 N – ideal for harsh production environments
Simple plug & play installation via pre-assembled M8 connectors (male/female)
Switching pressure: approx. 150 N (test body Ø 80 mm)
Inactive edge: 42 mm
Expandable: series connection of several mats up to a total area of 10 m². For flush installation, the ramp rail can be easily cut off at the specified cutting gap.
