BEA LZR®-FLATSCAN SW Safety Sensor for Doors Set

€849.00*

in stock

Product number: TA0300073
Picture can deviate from the original
prouct.usp1.image

Technical Support Hotline +44 115 7180691

prouct.usp4.image

Only 100% New and Original Parts

prouct.usp5.image

Special Prices available for Door Dealers and Resellers. Contact us!

prouct.usp8.image

Stocked Products Ship within 24h

Other customers also bought

BEA LZR®-FLATSCAN SW Safety Sensor for Doors Set SILVER
€995.00*
plus VAT

delivery time: 3-5 working days

BEA LZR®-FLATSCAN SW Safety Sensor for Doors Set WHITE
€995.00*
plus VAT

delivery time: 3-5 working days

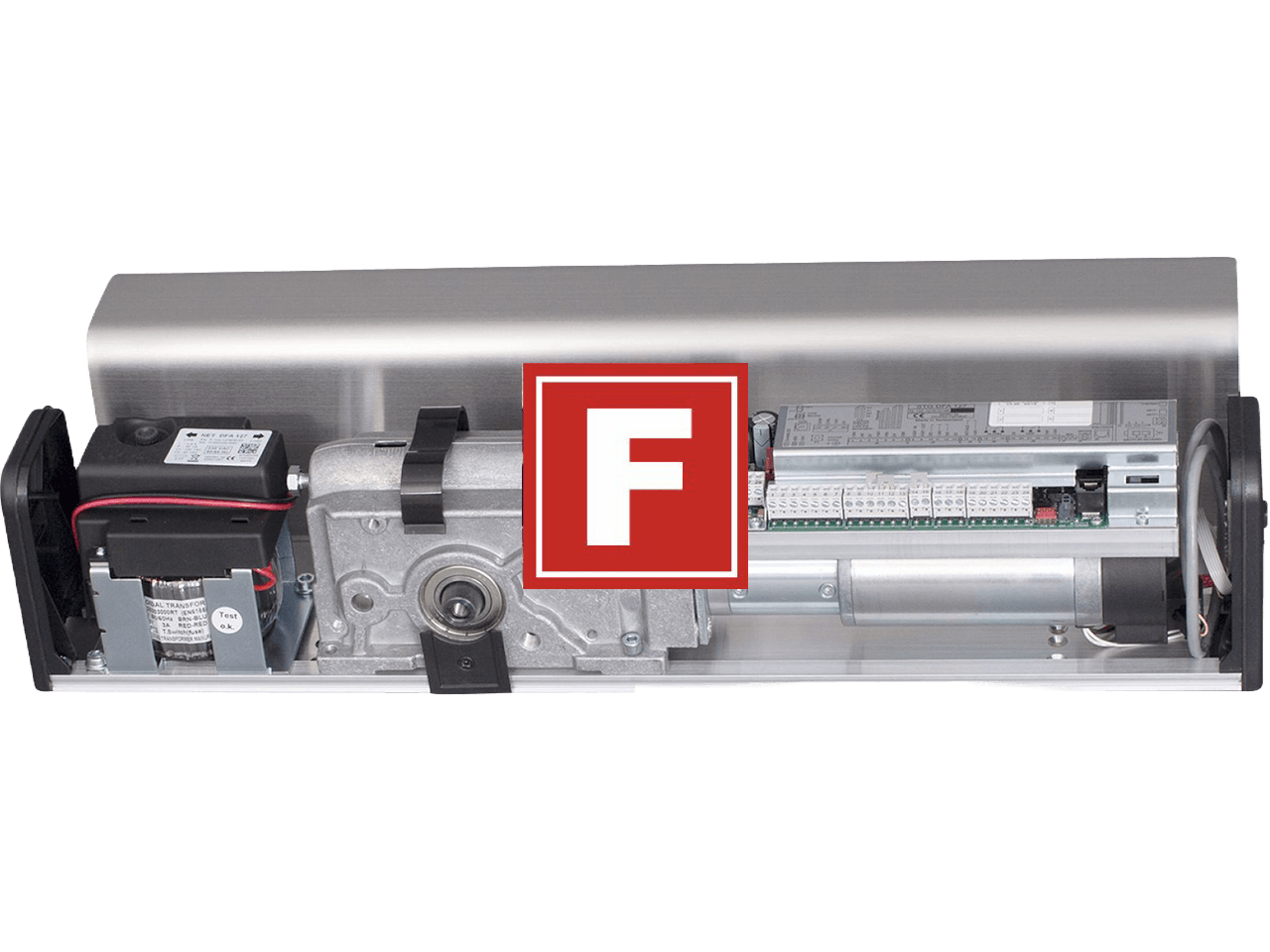

Record swing door drive DFA 127 FP EU F FULL POWER FIRE
€1,816.00*
plus VAT

delivery time: on stock

Record swing door drive DFA 127 FP GG EU FULL POWER
€1,735.00*
plus VAT

delivery time: on stock

Record swing door drive DFA 127 FP EU FULL POWER
€1,735.00*
plus VAT

in stock

BEA REMOTE CTRL UNIT Universal Remote
€39.00*
plus VAT

in stock

Product information "BEA LZR®-FLATSCAN SW Safety Sensor for Doors Set"

Safety sensor for doors and windows, set contains 2 x Laser-Scanner (left- and right-hand installation), complete monitoring of the detection zone (70 laser points) and the pinch zone (100 laser points), max. range 4m

Description:

The BEA LZR® FLATSCAN SW uses laser technology time-of-flight measurement) to monitor automatic swing doors. Full protection of the doors is guaranteed by 170 measurement points. One single FLATSCAN SW Module is enough to secure the entire door wing as well as the hinge and the area directly to the side of the closing edge.
The LZR FLATSCAN can be used for monitoring as a pair (e.g. in swing doors), or as a single sensor (e.g. in windows).

Properties:

  • Maximum detection range of 4m (diagonal) with reflectivity of 2% (i.e. at 1.5m -> max. H = 3.7 m).
  • Possible monitoring of the closing edge
  • Compact design (8.5 cm x 14.2 cm), can be integrated into any door
  • Works with all floor types ((slatted floors, wire mesh, absorbent carpets, reflective flooring, slippery surfaces, etc.) and with the doors' surroundings (handrails, walls, radiators, dustbins, etc).
  • One module per side is enough to secure the door wings as well as its hinges.
  • Useable as a pair (i.e. for doors) or on its own (i.e. for windows).
Properties
Cable Length: 2.5 m
Connection Type: Cable, w/o plug
Function: Safety Sensor
Material: PC/ASA
Max. Operating Temperature: +60 °C
Min. Operating Temperature: -30 °C
Output: 2x Solid-state relay
Protection Class: IP 54
Supply Voltage: DC 12-24 V
max. Installation Height: 4.0 m
max. Switching Current: 100 mA
